LIMS Instrument Integration: How Data Actually Gets From the Machine Into the System
Walk into almost any test lab and look at the PC bolted to the tensile frame. The instrument software on it has been happily writing results to a folder for years. Walk over to the lab manager’s desk and you’ll find those same results being typed into a spreadsheet, a report, or a LIMS — by hand, from a printout, sometimes twice.
That gap is what “LIMS instrument integration” is supposed to close, and it’s the most over-sold, under-explained feature in the category. Vendors put it on the feature list; almost none of them tell you what it actually is, which is why we keep meeting labs that assume it means a driver, a middleware server, and a five-figure line item. For most test labs it means none of those things.
This is the practical version: what integration really means, the four ways it gets done, what each instrument in an engineering or QC lab actually exports, what a finished integration looks like row by row, and when you should skip it entirely.
What instrument integration actually means
LIMS instrument integration is getting the results an instrument produces into the sample record without a person re-typing them. That’s the whole definition. It says nothing about cables, protocols, or drivers, because for the overwhelming majority of instruments in a test lab, the hard part isn’t talking to the machine — it’s that the machine already talks, in the form of a file, and nobody has connected the file to the sample.
The myth comes from the other side of the industry. In a high-throughput clinical or pharma lab, instruments run unattended around the clock, and there the conversation genuinely is about live connections, middleware, and vendor drivers. Most of what you’ll read about LIMS is written for that kind of lab. If you run a materials lab, an engineering test lab at a manufacturer, or a QC bench with a handful of analyzers, those articles are describing someone else’s problem.
Your instruments export files. Integration is what happens to the file.
The four tiers, and when each one pays off
Every lab sits somewhere on this ladder. The trick is picking the rung that matches your volume, not the highest one the salesperson can reach.
Tier 0: re-keying
Someone reads the number off the instrument screen or the printout and types it into the system. It’s not integration, but it’s worth naming because it’s the baseline everything else is measured against. It costs about a minute per value, and it introduces errors at a rate that feels small until an auditor finds a transposed digit in a certified result. If a test runs three times a week and produces two numbers, re-keying is fine. Be honest about which tests are actually like that.
Tier 1: paste
The instrument software exports to CSV or Excel. The technician opens it, copies the block of cells, and pastes it into the results table, where the rows land on the right samples. Zero setup, zero maintenance, and included in any LIMS worth the name — in LIMSey it’s a note above the results table that says exactly that. This is the correct tier for a surprising number of tests: anything with a few samples per run and a human already looking at the results before they’re released.
Tier 2: import with review
The technician drags the exported file onto an import page. The system parses it, matches each row to a sample, flags the ones it can’t place or has seen before, and shows all of it before anything is recorded. One click uploads the rest, and the original file is attached to the import as the permanent record. This is where most instruments that run daily should live, and it’s the tier the rest of this post is mostly about, because it’s the one that vendors describe least and labs need most.
The hands-off variant of the same tier is a watched folder: point the import page at the folder the instrument software exports to, and new files are picked up and queued for review whenever the page is open — same review, nobody dragging files around. For an instrument PC that can’t run a browser at all, a small script does the same job unattended: it sends each new file to the LIMS and moves it to archive when it’s done. Either way the parsing and the checks happen in one place.
Tier 3: your own script and the API
Some rigs are already software. A LabVIEW harness, a DEWESoft acquisition setup, a Python script driving a custom fixture — when the test finishes, that code can post the results straight to the LIMS through its API, using a token scoped to just that job. If your code produces the numbers, this is the right tier.
Where labs go wrong is using the API for an instrument that already exports a file. It’s tempting: an engineer writes a script that reads the CSV and pushes the values, and it works for a while. But that script is a private copy of the import, minus the review screen. It won’t hold back a mistyped sample ID. It won’t notice a file uploaded twice. And it belongs to the engineer who wrote it — right up until they leave and the instrument software changes its export format. If the file already exists, use the import. Save the API for numbers that are born in your code.
Tier 4: native drivers and middleware
Live, vendor-built connections between instrument and LIMS, often through an instrument-data middleware layer. This is real technology and it’s the right answer for a chromatography lab running 400 injections a night. It’s also expensive, tied to specific instrument models and software versions, and the first thing to break when either side updates. In ten years of working with test labs, nobody has asked us for it. Tier 2 is what gets asked for — two customers asked for it independently, within a few months of each other, and that’s why it exists. That ratio is the point.
The rule of thumb: count the results a test produces per week. Under twenty, paste. Twenty to a few hundred, import with review. Born in software, API. Thousands a night on the same instrument, go talk to a middleware vendor — and probably a different LIMS.
Machine by machine: what it exports and how it gets in
The instrument names below are the ones we see in customer labs. None of this is a claim that a specific driver exists — it’s what the export looks like and which tier fits.
Tensile and compression frames (Instron Bluehill, MTS TestSuite, Shimadzu Trapezium). These export a results table per batch — peak load, yield, elongation, modulus — as CSV or Excel, plus a PDF report and, if you ask, the raw load-displacement curve. The summary values are paste or import material. The curve is the interesting question, and it gets its own section below.
Hardness testers (Wilson, Buehler, Mitutoyo). Newer units export CSV; older ones either print or push a reading through a keyboard wedge, which types the value wherever the cursor is. A wedge into the results table is integration — it just doesn’t look like it.
CMMs and dimensional inspection (PC-DMIS, Calypso). Inspection reports export as PDF, CSV, or a structured report file per part. Many features per part and many parts per job make this a natural import: one file becomes a grid of results across samples. Gauges and calipers on a Mitutoyo U-WAVE are wedge input again.
Environmental chambers and ovens (Watlow, ESPEC, Thermotron controllers). These produce time-series logs, not results. Don’t try to turn a 48-hour temperature trace into rows of numbers. Attach the log to the task, record the values that matter — set point, actual min and max, dwell time — as results, and keep the file for the auditor.
DAQ and custom rigs (NI LabVIEW and TDMS, DEWESoft, Keysight). The data is born in code, so this is the API tier: post the summary values when the test completes and attach or store the full payload. If you have an engineer who already wrote the acquisition script, adding an upload step to it is an afternoon.
Spectrometers and analyzers (ICP-OES and ICP-MS, XRF, NIR, and bench analyzers like a CDR FoodLab). One run covers many samples and reports many measurements per sample — elements, constituents, properties — so the export is a wide grid, and the instrument software mixes calibration and QC lines in with the samples. This is the textbook case for import with review, and it’s the one we’ll show.
Balances and simple meters. RS-232 out, keyboard wedge in. Paste tier, effectively.
Notice what’s absent: not one of these needs a driver. Every one of them already produces a file or types a number.
What a finished integration looks like, row by row
Two of our customers, independently, asked for the same thing: results from their ICP landing on the right samples without anyone re-keying element concentrations. One of them also runs a bench of three FOSS NIR analyzers and a CDR FoodLab that export the same way. So we built it, and the shape of what we built is a fair template for what you should expect from any vendor that lists “instrument integration” as a feature.

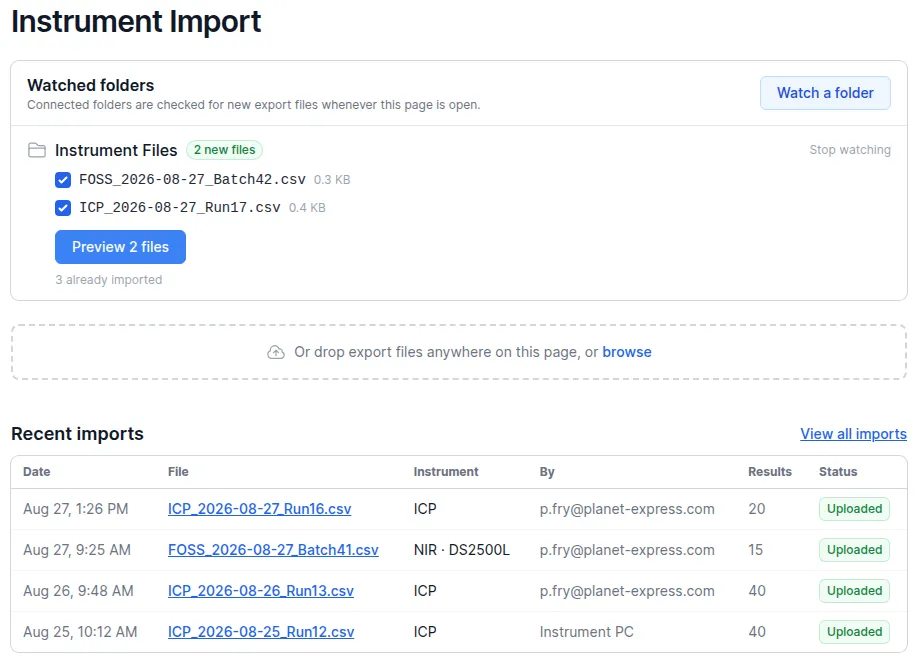

It starts with a page that does two things — watch the folders the instruments export to, and take anything you drag in:
The technician exports the run from the instrument software, and the page notices the new file — two of them here, a FOSS NIR batch and an ICP run — and offers to preview them. Nothing has been recorded yet. That’s the important property of the whole design: every row is reviewed before anything is recorded. The next screen is the review:

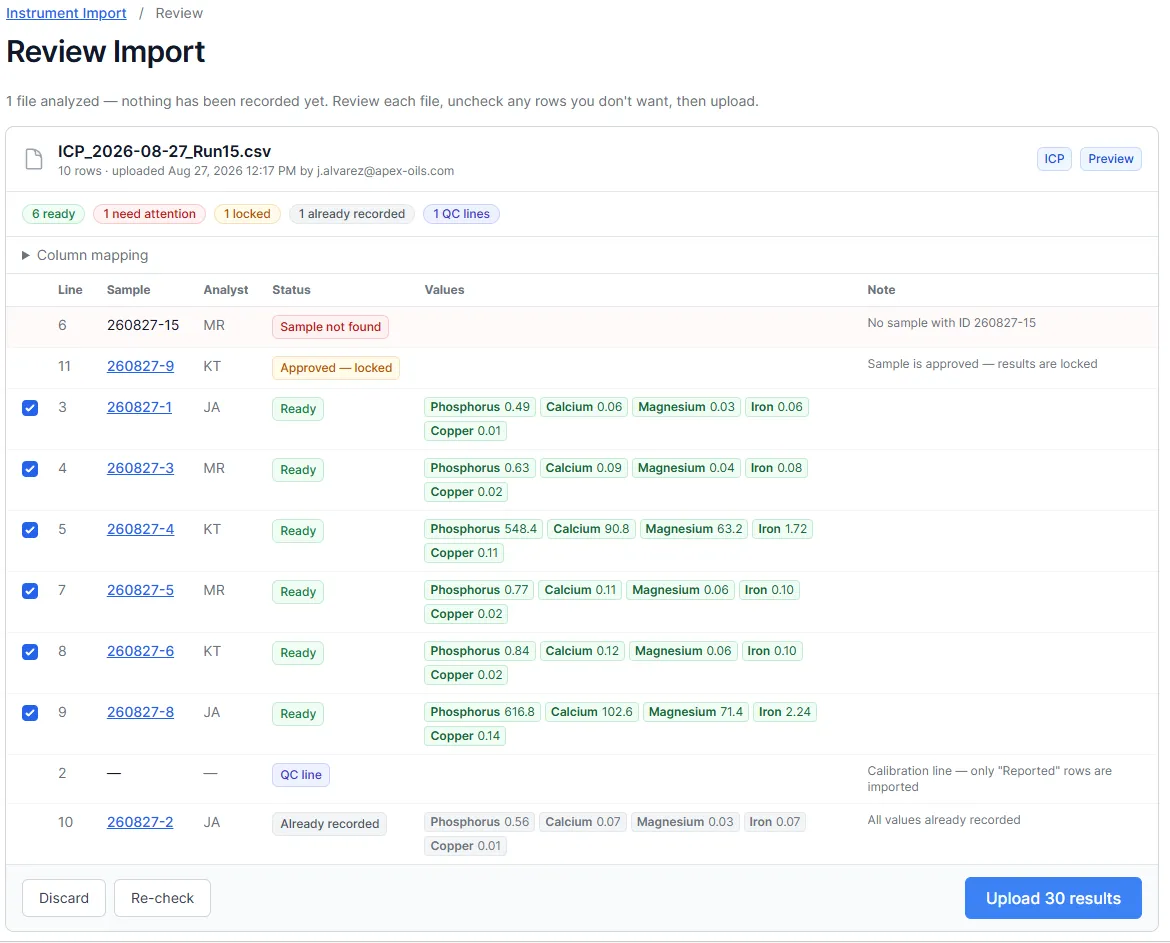

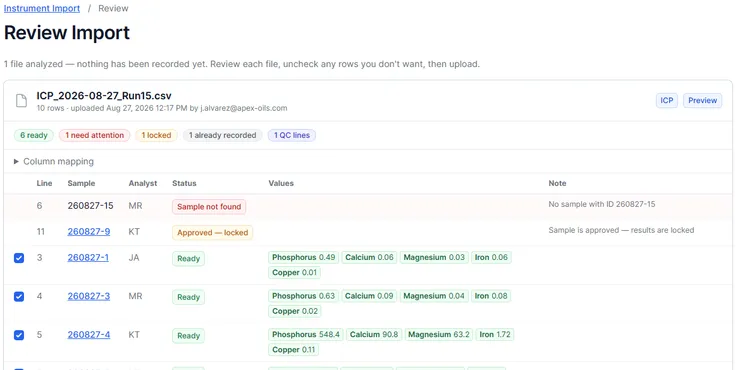

Every status on that screen exists because something went wrong once. Reading down:
- Ready — the sample ID in the file matched a sample in the system, the values parsed, nothing is in the way. These are checked by default.
- Sample not found — the file says
260827-15; no such sample exists. Nine times out of ten it’s a typo on the instrument sample sheet, or the sample hasn’t been created yet. The row is held back, the technician fixes the cause, hits Re-check, and it goes green. Silently importing this row would have created an orphan result or, worse, attached it to the wrong specimen. - Approved — locked — the sample’s results have already been reviewed and approved, so nothing can overwrite them. If you genuinely need to replace an approved value, that’s a deliberate act in the sample record with an audit trail, not a side effect of an upload.
- Already recorded — this file, or these exact values, have been imported before. Re-uploading is harmless. This is what makes the whole thing safe: a technician can upload the same file twice on purpose or by accident and the answer is the same.
- QC line — the calibration standard and check samples the instrument reports alongside the real ones. They’re recognized and set aside. They still live in the attached file; they’re just not results on a sample.

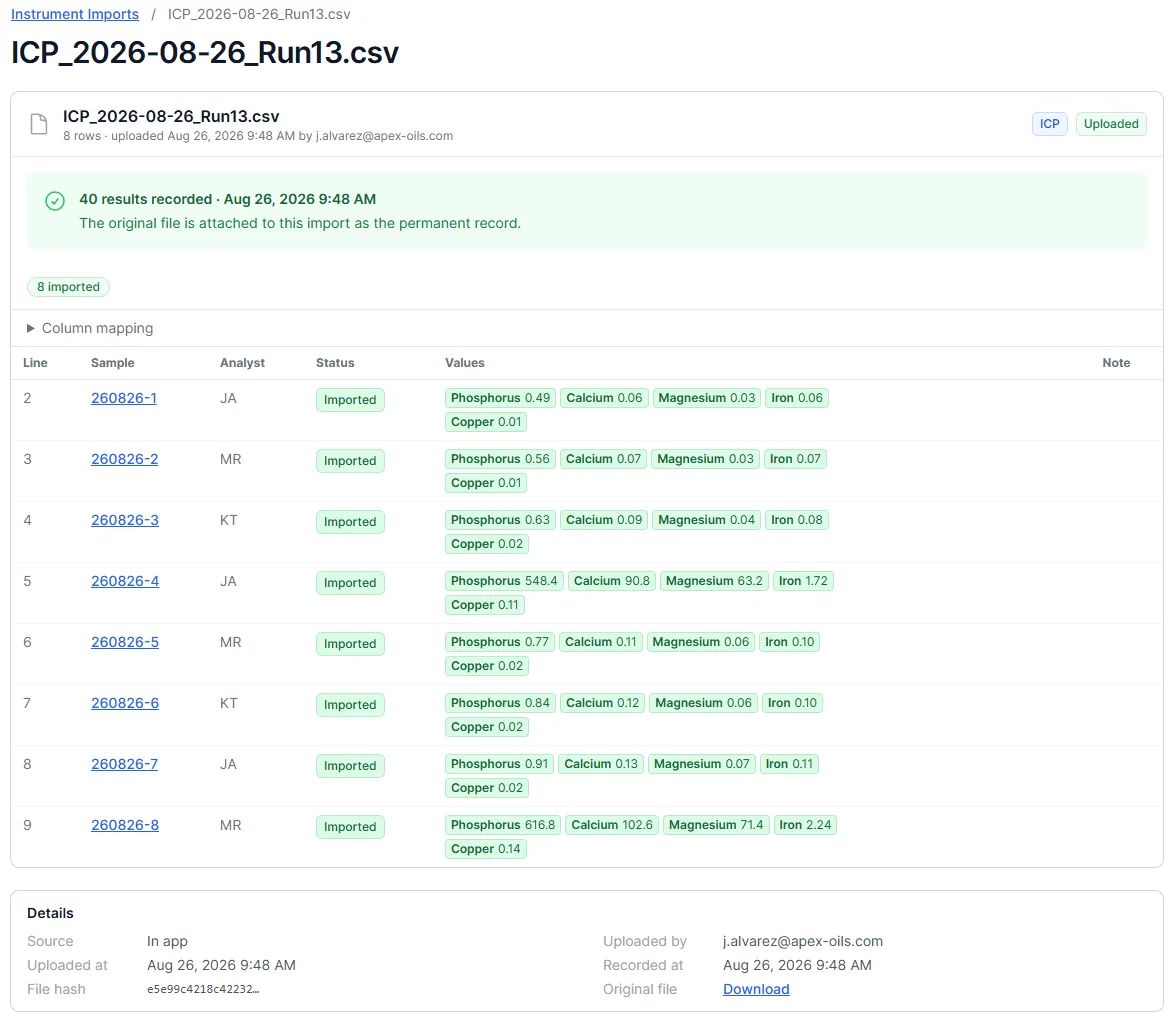

Then the button says exactly what will happen — Upload 30 results, not Submit — and afterward the import becomes a record:
Which file, its hash, who uploaded it, when it was recorded, which samples received which values, and the original file itself — downloadable, attached to the import for good. Look back at the first screenshot and you’ll see one row uploaded by “Instrument PC” rather than a person: that’s the drop-folder script doing the same import unattended, landing in the same log.
None of this is exotic. The review screen and the permanent record are built once; a new instrument is a few days of work, nearly all of it in the parser for that export format. But it’s the difference between “we integrate with instruments” as a checkbox and as a thing your technician will actually use on a Tuesday.
Store the number, keep the curve
A tensile test produces a number — peak load — and a curve. An ICP run produces a concentration and a whole run report with calibration data behind it. Which do you keep?
Both, in different places. The number goes into the results table because that’s what reports, pass/fail checks, and metrics run on. The curve, the run report, the raw payload — those get attached, not parsed: the original export attached to the import, and for API integrations a data-blob field on the result that holds the full JSON or XML the rig produced.
This matters for two reasons. The practical one: when a value looks wrong six months later, the curve tells you whether the test or the transcription was the problem. The formal one: ISO/IEC 17025 clause 7.5 requires technical records sufficient to repeat the activity under conditions as close as possible to the original, and clause 7.11 asks you to show that data can’t be altered without a trace. A results table alone doesn’t satisfy either. A results table plus the original file, its hash, and who uploaded it when does — automatically, as a side effect of the import. Labs that keep an archive folder on the instrument PC “just in case” have the right instinct; the attachment is the same instinct with an audit trail. (More on the standard in our ISO 17025 guide and on what it looks like in the software.)
Where the upload should run
A detail nobody writes about, and it decides the architecture: can the instrument PC reach the LIMS at all?
Instrument computers are the oldest, most locked-down machines in the building. They run whatever version of Windows the instrument was certified on, IT doesn’t want them on the internet, and nobody wants to install anything on them because the instrument vendor’s support contract says not to. This is precisely why file-based integration beats instrument-side API calls: an export to a folder needs no permissions, no installer, and no network beyond the one the PC already has.
If the instrument PC has outbound HTTPS, the import runs from it — a browser tab watching the export folder for the review flow (folder watching needs Chrome or Edge, and the page open), or the small script for unattended runs. If it’s LAN-only, the instrument software exports to a network share (\\labserver\icp\inbox), and the watched folder or the script lives on a lab server or any PC that can see both the share and the LIMS. The technician’s “click” becomes the export itself. Same import, different box. Ask this question before anyone quotes you an integration.
How to know the integration is right
Instrument integration is software that changes certified results, so validate it like one. The checklist we use, and the one to hold any vendor to:
- Round-trip a known file. Take a real export where you know the answers, import it, and compare every value in the results table to the file. Not a sample — every value.
- Break the sample IDs. Misspell one, delete one, duplicate one. Each should be held back with a reason, not silently skipped or silently attached.
- Upload the same file twice. The second upload should record nothing and say so.
- Change the export. Add a column, reorder columns, add a preamble line the way instrument software updates love to. The import should either handle it or refuse clearly; the failure mode you’re testing for is “imported the wrong column into the right field.”
- Check the units. ppm vs. wt%, psi vs. MPa. Units should come from the mapping or the file, never be assumed.
- Find the original. Six months after the import, can someone who wasn’t there find the file, prove it’s unchanged, and see who uploaded it?
- Write it down. Date, version, who ran the checks, what passed. That’s your 7.11 validation record, and it’s ten minutes if you do it while the tests are fresh.
When integration isn’t worth it
Three honest cases.
The test is rare. Two numbers, three times a week — paste it and spend the budget on something that runs every day.
The export is unstable. Some instrument software changes its export format with every update, and some labs let every technician set their own export template. Until the export is stable and standardized, an integration is a maintenance contract. Fix the template first; it’s free.
You’re being sold a driver you don’t need. If the quote includes middleware licenses, a server, and per-instrument connector fees for a lab that runs a tensile frame and two hardness testers, the vendor has misidentified which lab you are. Walk them back to the file.
Instrument integration FAQ
Can a LIMS connect to any instrument?
Any instrument that exports a file — CSV, Excel, a report, a data log — or types a value through a keyboard wedge can be integrated, which covers nearly everything in an engineering or QC lab. The remaining cases, mostly instruments that only print or only speak a proprietary live protocol, need a driver or middleware and are rare outside high-throughput analytical labs.
Do I need middleware for LIMS instrument integration?
Usually not. Middleware earns its cost when many instruments run unattended at high volume and need live, bidirectional connections. For file-exporting instruments run by technicians, an import with row-by-row review or a drop folder does the job with nothing extra to license or maintain.
What file formats do instruments export?
CSV and Excel are the common denominators — tensile frames, hardness testers, CMM software, spectrometers, and bench analyzers all produce them. Chambers and DAQ systems produce time-series logs (CSV, TDMS) that are better attached than parsed. Most instrument software also produces a PDF report; keep it as an attachment, don’t try to scrape it.
How long does an instrument integration take?
For a stable export format, a few days for the parser and validation, then a week or so of the technicians running it alongside their old process before they trust it. If the format matches one the vendor has already built — ICP, NIR, and CDR for us — it’s faster still. The long pole is never the software; it’s an export template that changes from one technician to the next.
What does LIMS instrument integration cost?
Paste and API access should be included in your seats; ours are. Bespoke imports are scoped to the export format and quoted up front, sometimes at zero. Be suspicious of per-instrument connector fees and middleware licenses for a lab that doesn’t run unattended. Our seat prices are published, and we wrote up what a LIMS costs more broadly.
Can I keep my archive folder?
Yes, and you should keep the habit. An import that attaches the original file with its hash is the same idea with an audit trail; the folder on the instrument PC is a convenient second copy.
